TEST FIXTURE
Test fixture

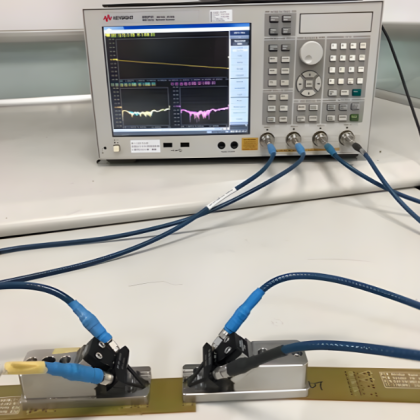

Delta L 4.0 3.0
Delta L 4.0 3.0 量測

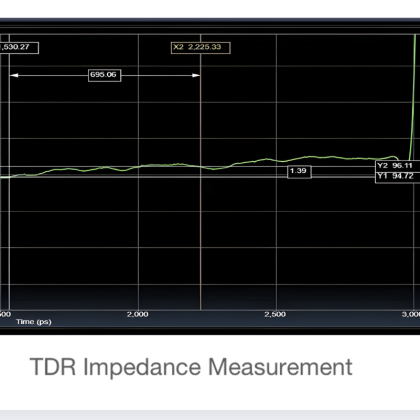

Characteristic Impedance
By using vector network analyzers (VNA) and real-time domain TDR instruments, S-parameter and impedance analysis can be performed on PCBs and discrete components. Combined with probe stations and probes of various pitch configurations, this setup enables accurate testing and analysis of PCBs or PCBAs with challenging geometries and access angles.

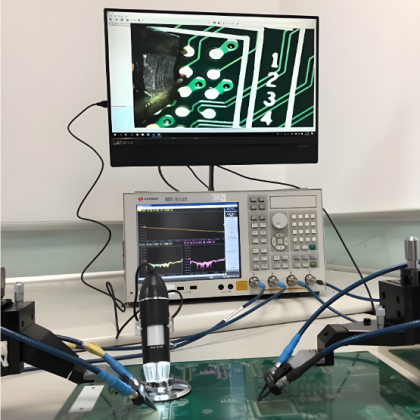

S Parameter
By utilizing vector network analyzers (VNA) and real-time domain TDR instruments, comprehensive S-parameter and impedance analysis can be performed on PCBs and electronic components. When combined with probe stations and probes with various pitch configurations, this setup enables accurate testing and analysis of PCBs or PCBAs with limited access or challenging probe angles.
Dk Df Analysis
By utilizing vector network analyzers (VNA) or LCR meters, and following IPC-TM-650 standards, a range of material characterization methods can be applied, including SPDR, SCR, and capacitance measurement techniques. Measurements are performed according to the specified frequency ranges and sample requirements, enabling accurate characterization and analysis of key material electrical properties.
